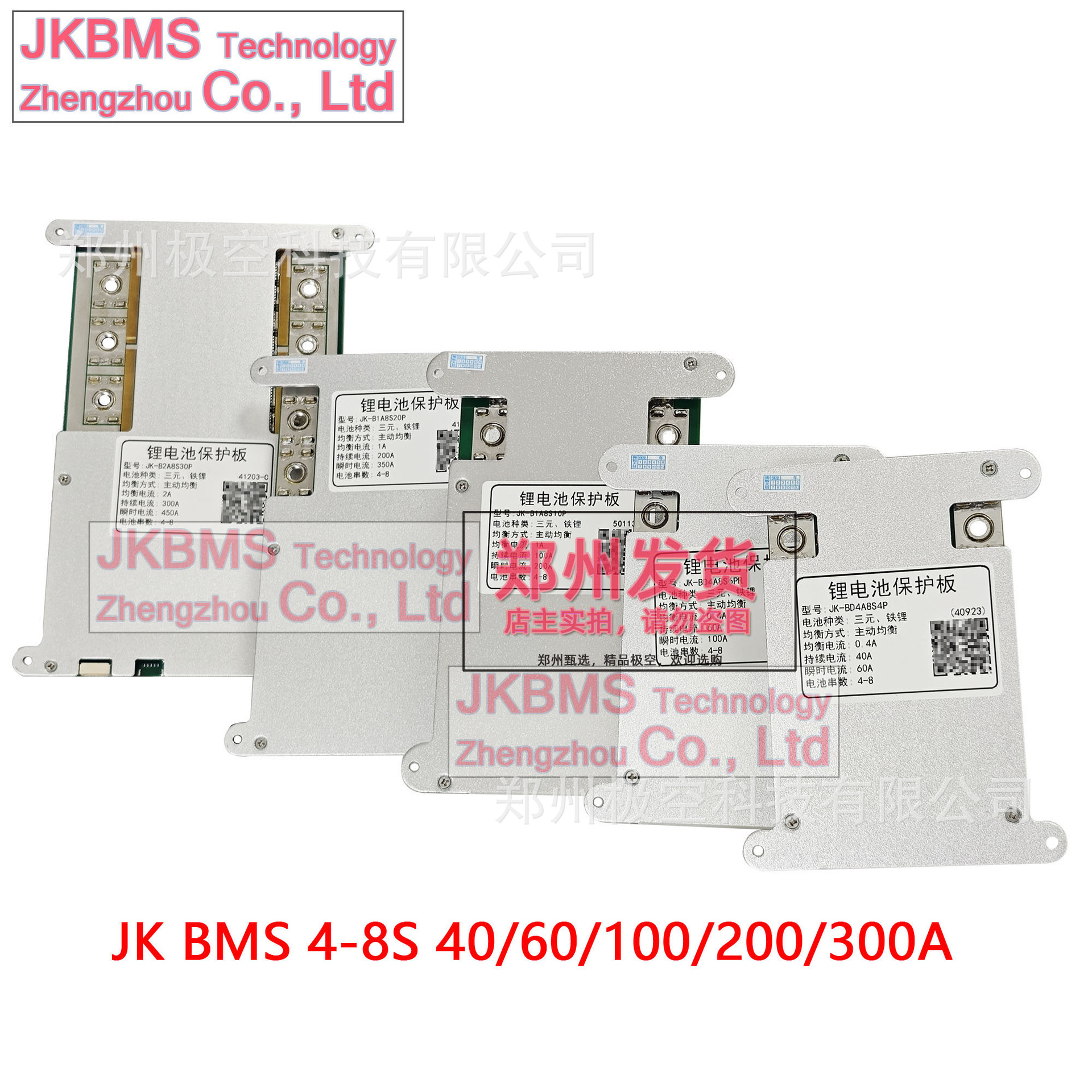

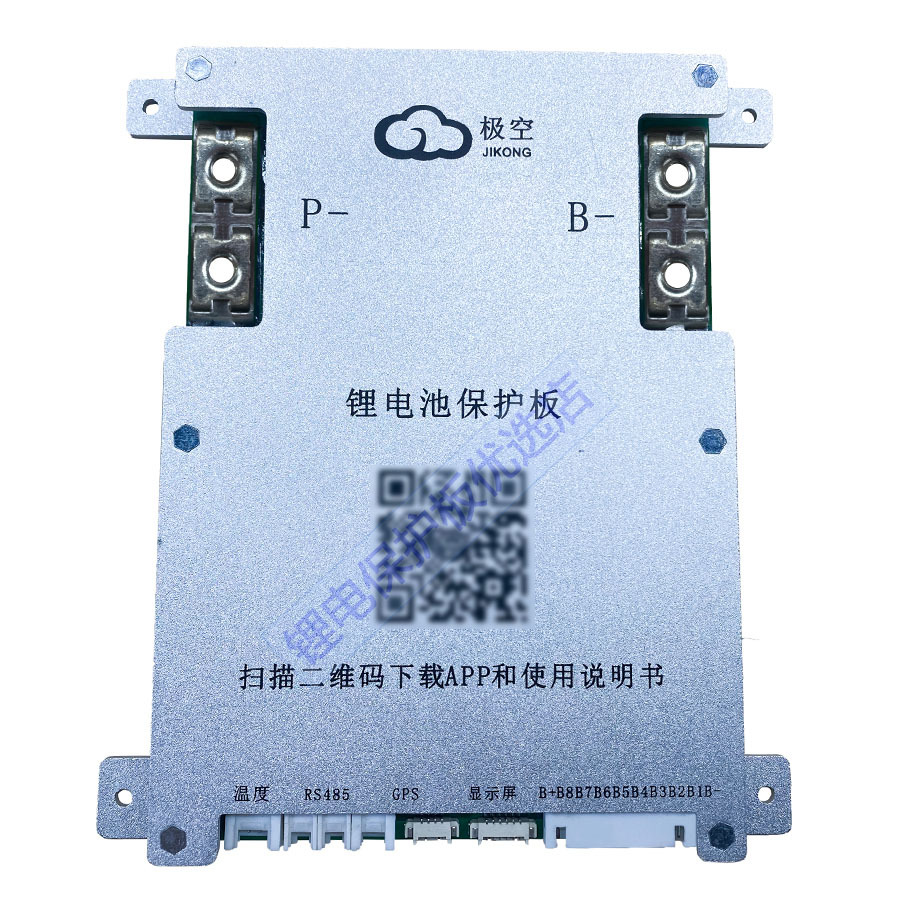

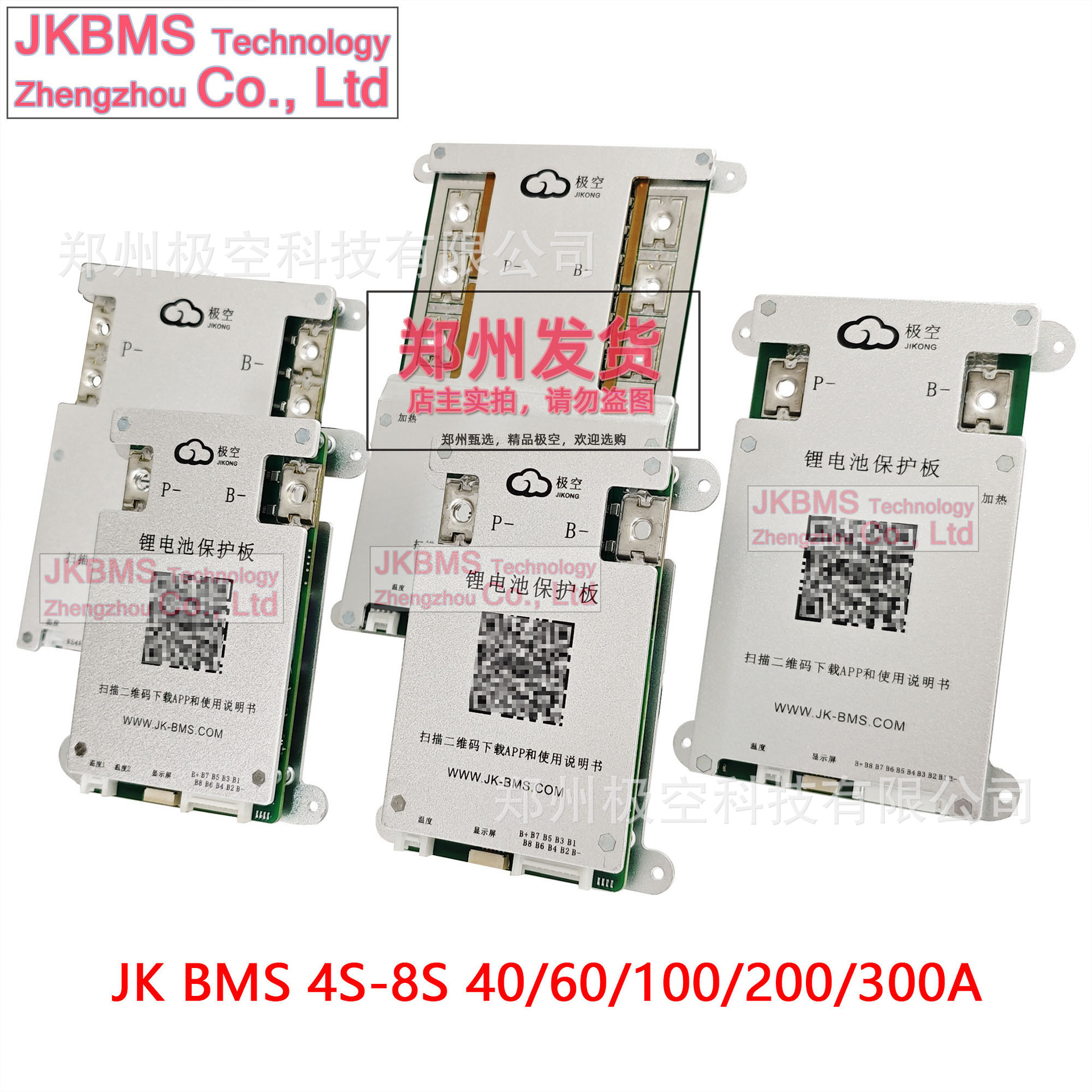

Jignkong Protection Board 4 Strings 5 Strings 6 Strings 7 Strings 8 Strings Lithium 12V24V Battery Smart JKBMS ActiVe Balanced High Current
Jignkong Protection Board 4 Strings 5 Strings 6 Strings 7 Strings 8 Strings Lithium 12V24V Battery Smart JKBMS ActiVe Balanced High Current - Image 2
Jignkong Protection Board 4 Strings 5 Strings 6 Strings 7 Strings 8 Strings Lithium 12V24V Battery Smart JKBMS ActiVe Balanced High Current - Image 3
Jignkong Protection Board 4 Strings 5 Strings 6 Strings 7 Strings 8 Strings Lithium 12V24V Battery Smart JKBMS ActiVe Balanced High Current - Image 4
Jignkong Protection Board 4 Strings 5 Strings 6 Strings 7 Strings 8 Strings Lithium 12V24V Battery Smart JKBMS ActiVe Balanced High Current - Image 5

Jignkong Protection Board 4 Strings 5 Strings 6 Strings 7 Strings 8 Strings Lithium 12V24V Battery Smart JKBMS ActiVe Balanced High Current

Price range: 4,127.26৳  through 13,579.76৳

SKU: 01JJF7XXM5EVFQWS7G1ZRFBSRE Category: Tag:
Add to wishlist

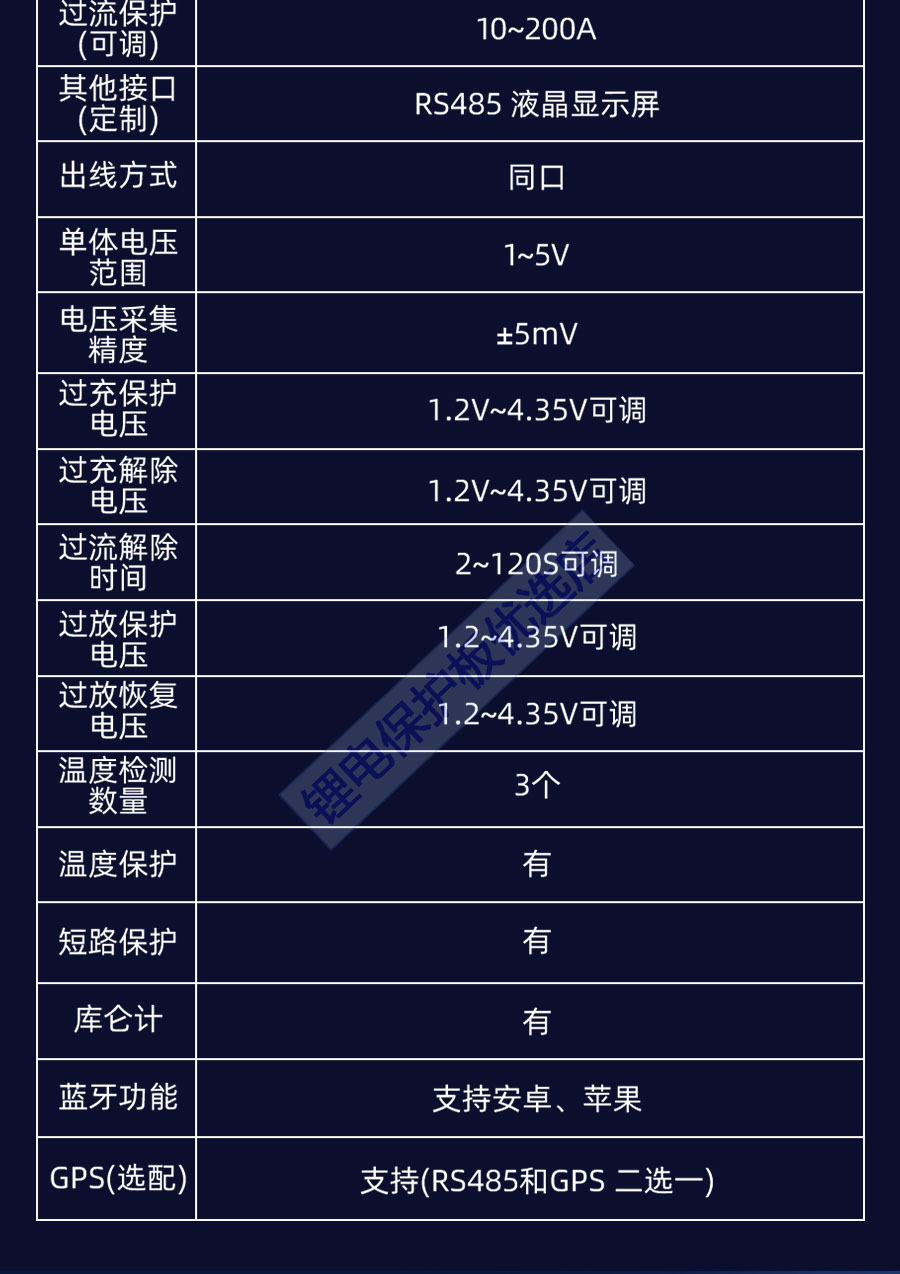

Specification:

  • Weight: 0.35 kg
  • Brand: Extremely empty
  • Model: 4-8 strings 40a continuous-balanced 0.4a
  • Model: 4-8 strings 60a continuous-balanced 0.4a
  • Model: 4-8 strings 100a continuous-balanced 0.6a
  • Model: 4-8 strings 100a continuous-balanced 1a

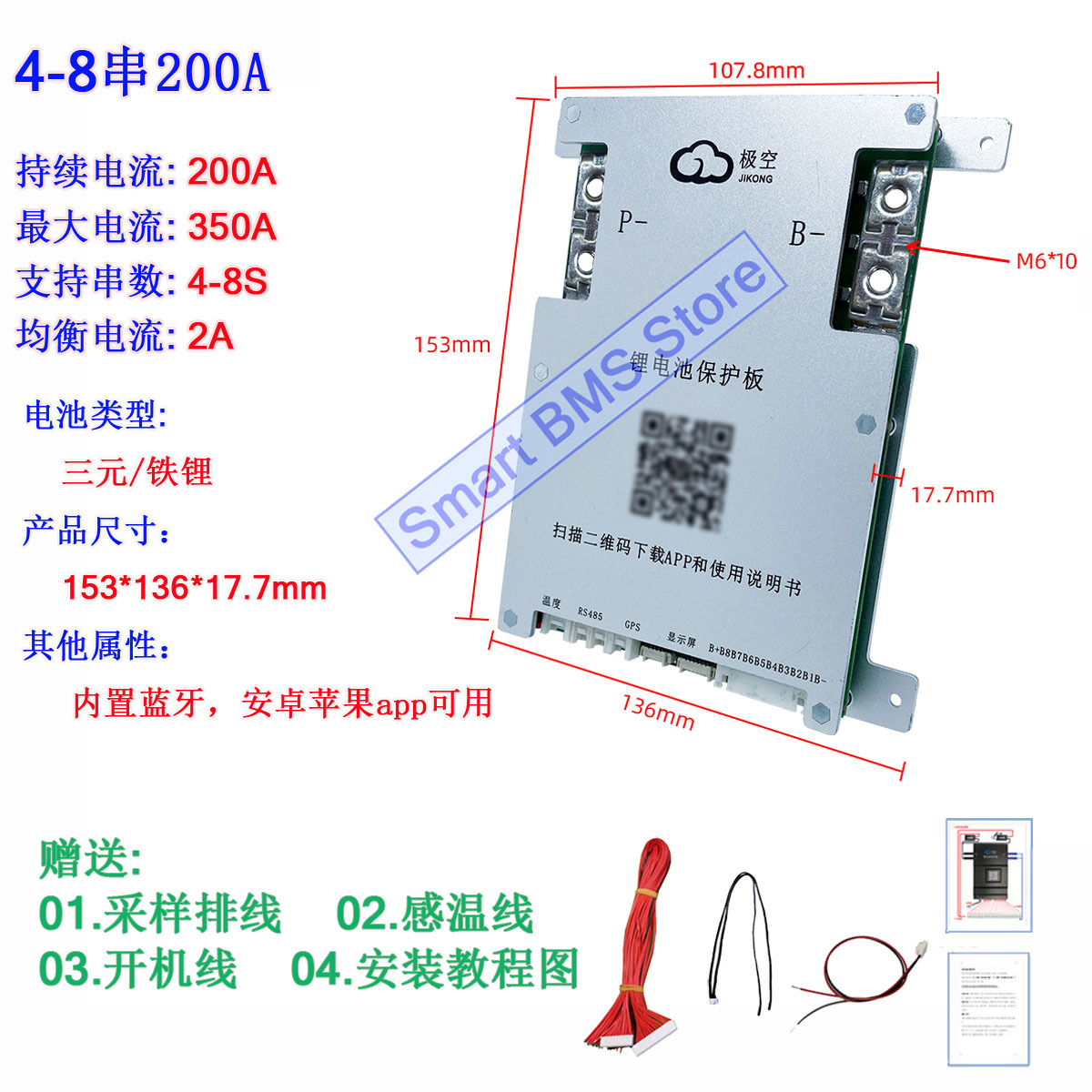

  • Model: 4-8 strings 200a continuous-balanced 1a
  • Model: 4-8 strings 200a continuous-balanced 2a
  • Model: 4-8 strings 300a continuous-balanced 2a

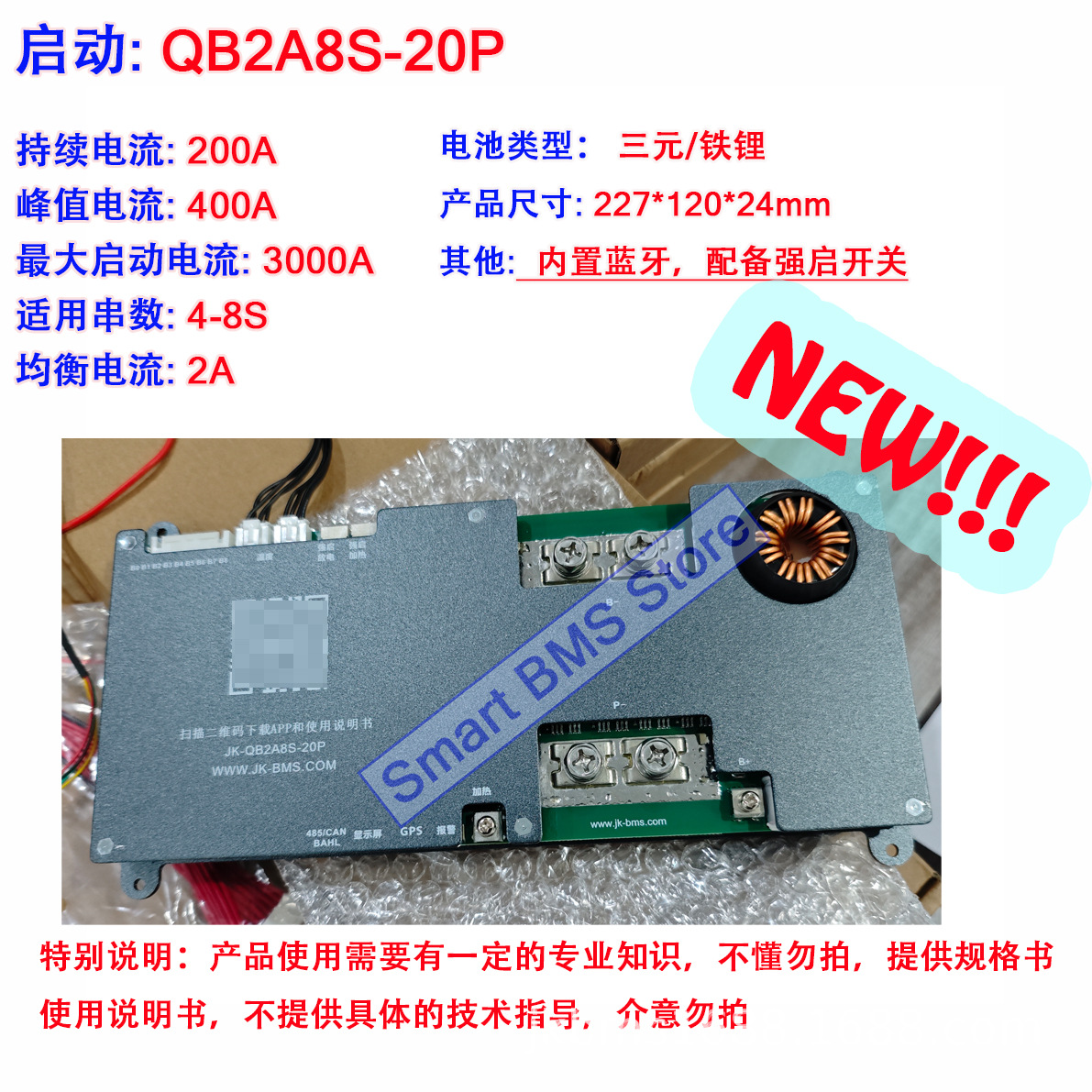

  • Model: Start 4-8 strings 200a continuous – balanced 2a
  • Model: The super capacitor of the start board

Product Description:

所有极空保护板的参数如下表//The following table lists the parameters of all JKBMS:

Model/型号

Cont.Curr/

持续电流

Max.Curr/

峰值电流

Strings/

串数

Balancer.Curr/

均衡电流
JK-BD4A17S-4P 40A 60A 8-17S 0.4A
JK-BD4A20S-4P 40A 60A 8-20S 0.4A
JK-BD4A24S-4P 40A 60A 8-24S 0.4A
JK-BD6A17S-6P 60A 100A 8-17S 0.6A
JK-BD6A20S-6P 60A 100A 8-20S 0.6A
JK-BD6A24S-6P 60A 100A 8-24S 0.6A
JK-BD6A17S-8P 80A 150A 8-17S 0.6A
JK-BD6A20S-8P 80A 150A 8-20S 0.6A
JK-BD6A24S-8P 80A 150A 8-24S 0.6A
JK-BD6A20S-10P 100A 200A 8-20S 0.6A
JK-BD6A24S-10P 100A 200A 8-24S 0.6A
JK-BD6A20S-12P 120A 240A 8-20S 0.6A
JK-BD6A24S-12P 120A 240A 8-24S 0.6A
JK-BD6A20S-15P 150A 300A 8-20S 0.6A
JK-BD6A24S-15P 150A 300A 8-24S 0.6A
JK-BD6A20S-20P 200A 350A 8-20S 0.6A
JK-BD6A24S-20P 200A 350A 8-24S 0.6A
JK-B1A20S-15P 150A 300A 8-20S 1A
JK-B1A24S-15P 150A 300A 8-24S 1A
JK-B2A24S-15P 150A 300A 8-24S 2A
JK-B2A20S-20P 200A 350A 8-20S 2A
JK-B2A24S-20P 200A 350A 8-24S 2A
JK-BD4A20S-6P 60A 100A 8-20S 0.4A
JK-BD4A24S-6P 60A 100A 8-24S 0.4A
JK-BD4A20S-8P 80A 150A 8-20S 0.4A
JK-BD4A24S-8P 80A 150A 8-24S 0.4A
JK-BD4A20S-10P 100A 200A 8-20S 0.4A
JK-BD4A24S-10P 100A 200A 8-24S 0.4A
JK-B2A16S Balancer // 2-16S 2A
JK-B2A24S Balancer // 2-24S 2A
JK-B4A24S Balancer // 2-24S 4A
JK-BD4A8S-4P 40A 60A 4-8S 0.4A
JK-BD4A8S-6P 60A 100A 4-8S 0.4A
JK-B1A8S-10P 100A 200A 4-8S 1A

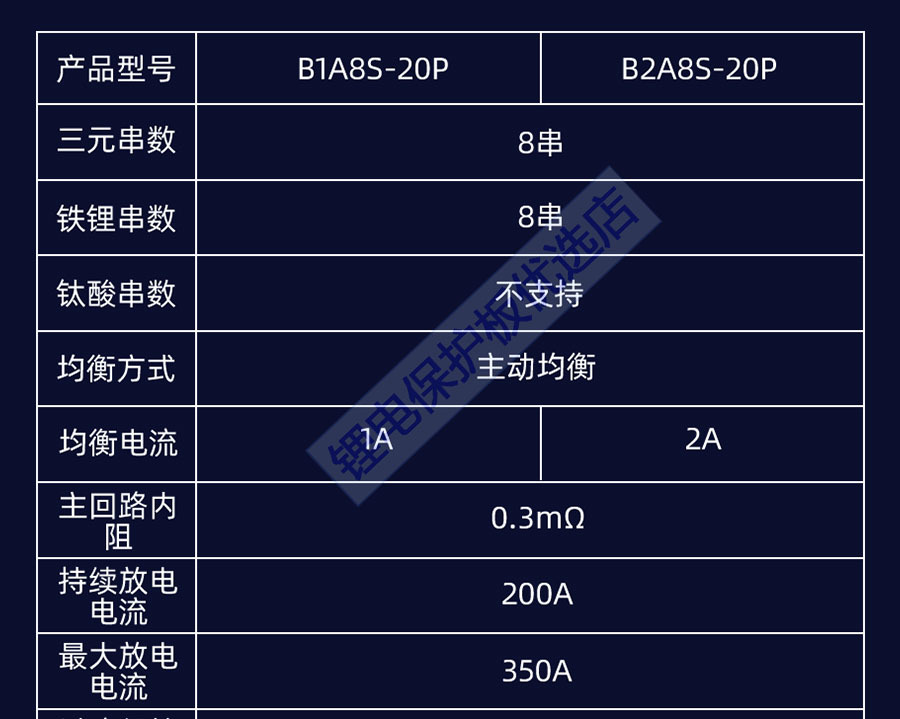

JK-B1A8S-20P 200A 350A 4-8S 1A
JK-B2A8S-20P 200A 350A 4-8S 2A
JK-B2A8S-30P 300A 450A 4-8S 2A
JK-PB1A16S-10P 100A 200A 8-16S 1A
JK-PB1A16S-15P 150A 300A 8-16S 1A
JK-PB2A16S-15P 150A 300A 8-16S 2A
JK-PB2A16S-20P 200A 350A 8-16S 2A
