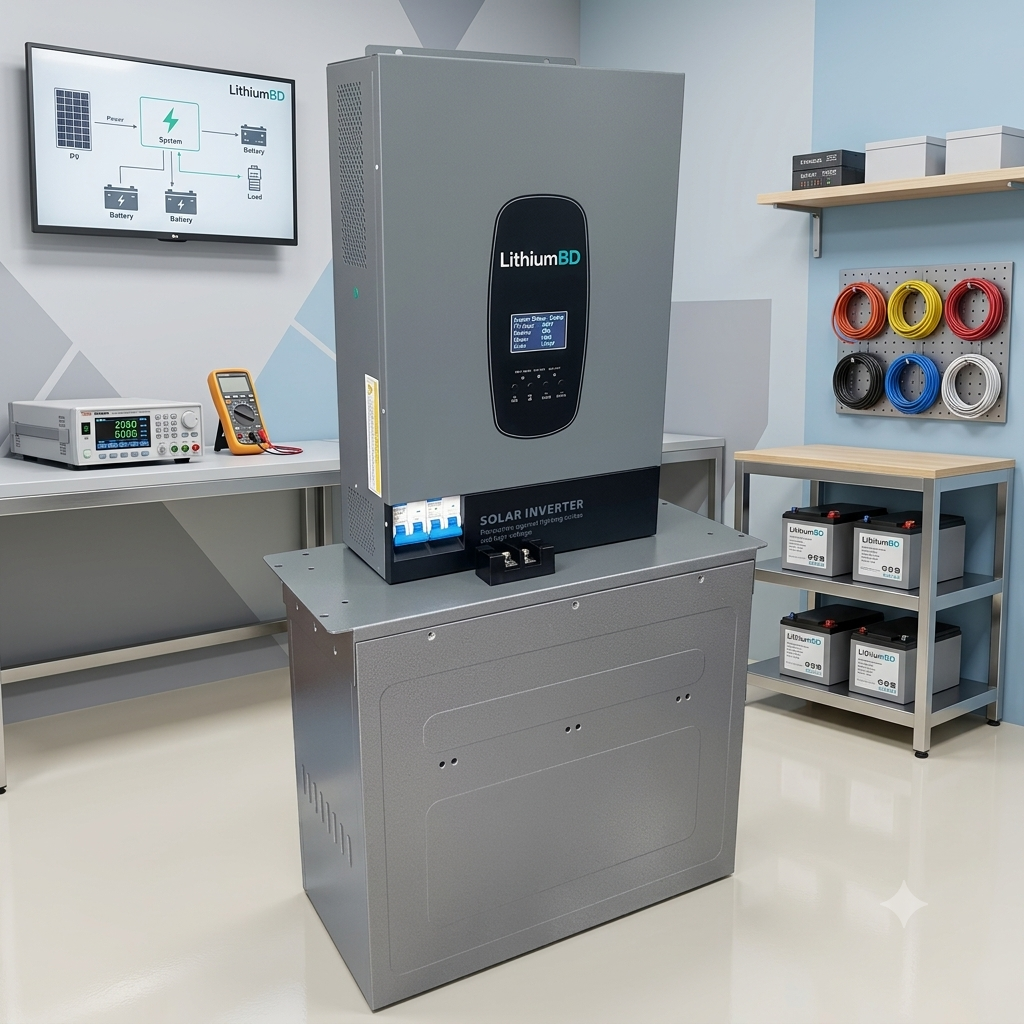

6.2kw solar hybrid inverter with 5kwh battery combo

DT4862L

CAPACITY:6200VA/6200W

PV&DC/AC:6500VA/6500W

OPERATING TEMPERATURE RANGE:-10~50℃℃

PROTECTION DEGREE:IP21

SOLAR MODE

SOLAR PANEL POWER:8500W

MAX CHARGING CURRENT: 120A

MAX INPUT CURRENT:36A

NOMINAL INPUT CURRENT:27A

SOLAR VOLTAGE RANGE(Vmp):60-500VDC

FULL LOAD MPPT RANGE:360-430VDC

MAX SOLAR VOLTAGE:500VDC

INVERTER MODE

BATTERY VOLTAGE RANGE:42-64VDC

MAX BATTERY DISCHARGE CURRENT:143A

AC OUTPUT:230VAC, 50/60HZ,27A 10

AC INPUT

AC CHARGER:54VDC, 100A



Smart bms wifi support 48v 100ah lifepo4 battery.

5 year warrenty.



AC INPUT:230VAC, 50/60HZ, 40A 10

AC OUTPUT:230VAC, 50/60HZ,27A 10

CODE:95624-075-002
